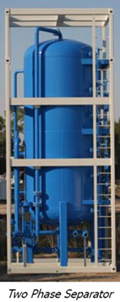

TEST TANK (TWO PHASE SEPARATOR)


The Test Tank (2-Phase Separator) is a pressurized vessel used measure liquid flow rates from the test separator. It is used to determine the accurate measurement of the shrinkage factor and obtain the meter factor.
The test tank is highly recommended for high oil/condensate producing wells when the stage separation is conducted at high pressures. The second, low pressure separation is used to remove dissolved gas from the condensate.

TECHNICAL SPECIFICATIONS

Working Pressure:                             50-psi
Service:                                              Standard
Standard:                                            NACE MR0175
Code:                                                  ASME
Safety Relief Valves:                                    2 x 3-inch
Connections:

Inlet Union (Female):                         3-inch x 1502
Outlet Union (Male):                         3-inch x1502
Drain Union (Male):                          2-inch x fig. 200
Relief Line Outlet Union (Male):     3-inch x 1502

Capacity:

Oil:                                                      100-Barrel
Gas:                                                    6 MMscfd
